Product overview

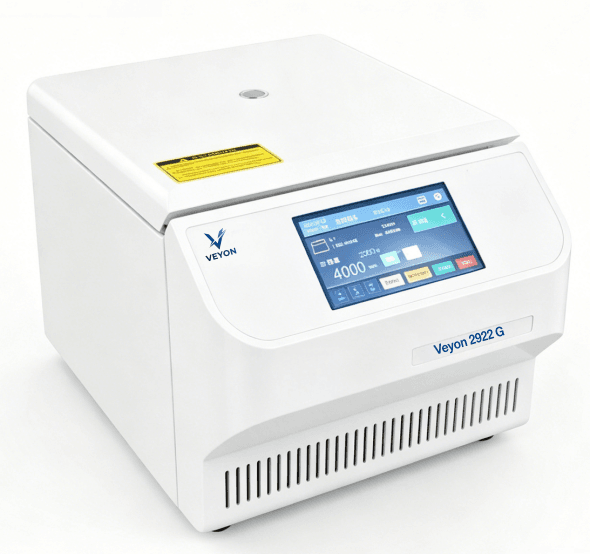

The Veyon 2922 G rotates further to 22,000 r/min and can generate a relative centrifugal force of up to 38,906 × g. The ultra-high-precision drive head motor structure achieves excellent smoothness and is suitable for molecular biology laboratories that require higher separation efficiency.
Best for Clinical testing and diagnosis, Separation of cells and biological samples, Pharmaceutical R&D Center. Selection guidance is available by process target, sample type, and throughput.
The Veyon 2922 G rotates further to 22,000 r/min and can generate a relative centrifugal force of up to 38,906 × g. The ultra-high-precision drive head motor structure achieves excellent smoothness and is suitable for molecular biology laboratories that require higher separation efficiency.
| Parameter | Value |
|---|---|
| Maximum speed | 22000 r/min |
| Maximum relative centrifugal force | 38906 × g |
| Acceleration/deceleration rate | 0~9 files |
| Overall dimensions | 520×360×323 mm |
Application
Serum/plasma preparation: used to separate serum or plasma from blood samples. It is a standard step before biochemical testing and immunoassays (such as ELISA). Urine/cerebrospinal fluid sedimentation: Concentrates the tangible components (such as cells, casts, crystals) in the sample to facilitate microscopic analysis.
View related articlesApplication
Temperature-controlled separation process for university and research institute laboratories.
View related articlesApplication
Large-volume blood separation in hospitals, biochemical research experiments in universities, etc.
View related articlesApplication
Environmental monitoring station water quality centrifugal analysis requirements, etc.
View related articlesApplication
Serving the batch centrifugation needs of chemical, new energy and materials laboratories.
View related articlesTechnical Article
Industrial quality control and materials testing usually face suspensions, powder dispersions, nanoparticles, slurries and complex matrix samples. This article combines the product parameters of Veyon 2922 G, Veyon 2925 G, and Veyon 2925 GR with Veyon’s delivery experience to provide recommendations for selection, process verification, and maintenance management.
Read articleTechnical Article
When transferring methods, it is common to encounter old equipment, paper methods, or kit instructions that only give RPM, resulting in inconsistent results between different rotors. This article combines the product parameters of Veyon 2104 G, Veyon 2921 G, and Veyon 2922 G with Veyon’s delivery experience to provide recommendations for selection, process verification, and maintenance management.
Read articleTechnical Article
本文围绕高速离心机选型，从样本类型、RCF/RPM、容量通量、温控保护、转子耗材、安全维护和采购验证角度，说明分子生物学、蛋白实验和高校科研实验室如何建立可执行的高速离心机选型与使用方案。
Read articleTechnical Article
本文围绕台式离心机和落地式离心机区别，从样本类型、RCF/RPM、容量通量、温控保护、转子耗材、安全维护和采购验证角度，说明新实验室建设、设备更新和项目采购团队如何建立可执行的台式离心机选型与使用方案。
Read articleTechnical Article
本文围绕RCF RPM 区别，从样本类型、RCF/RPM、容量通量、温控保护、转子耗材、安全维护和采购验证角度，说明需要复现实验方法、转移 SOP 或替换设备的实验人员如何建立可执行的RCF和RPM选型与使用方案。
Read articleTechnical Article
本文围绕离心管选择，从样本类型、RCF/RPM、容量通量、温控保护、转子耗材、安全维护和采购验证角度，说明样本前处理、耗材采购和实验 SOP 制定人员如何建立可执行的离心管选型与使用方案。
Read articleThe relative force value acting on the sample during centrifugation is usually calculated together with the rotation speed and rotor radius.
Equipment that uses centrifugal force to separate suspended particles in liquids
unnecessary. Veyon 2922 G adopts the latest precision anastomosis technology, which can be installed and removed by gently lifting it by hand without any tools.
some. The centrifuge chamber passed a 100-hour rigorous salt spray test and showed strong resistance to acid, alkali and corrosion.
The system has a real-time imbalance detection function. Once an abnormality is detected, a floating window alarm will pop up and the system will automatically shut down. All buttons will be blocked to ensure safety.
It adopts brushless variable frequency motor and circulating air duct heat dissipation design to support high-frequency and long-term operation. The timing range is up to 99 hours and 59 minutes.
Made of composite materials and painted, it has high resistance to acid and alkali corrosion and has passed long-term anti-corrosion tests.
Selection and service
Ask about Veyon 2922 G configurations, availability, and technical documentation.
Request configuration and quotationApplications
Clinical testing and diagnosis: Serum/plasma preparation: used to separate serum or plasma from blood samples. It is a standard step before biochemical testing and immunoassays such as ELISA . Urine/cerebrospinal fluid sedimentation: Concentrates the tangible components such as cells, casts, crystals in the sample to facilitate microscopic analysis.
Separation of cells and biological samples: Temperature-controlled separation process for university and research institute laboratories.
Pharmaceutical R&D Center: Large-volume blood separation in hospitals, biochemical research experiments in universities, etc.
Environmental monitoring analysis: Environmental monitoring station water quality centrifugal analysis requirements, etc.
Industrial quality control and material testing: Serving the batch centrifugation needs of chemical, new energy and materials laboratories.
